Brand: Dason
Product Name: electric plug lock (power on lock type)
Product model: dason-1054s-round head
Product voltage: DC6V / 12V / 24V current: 0.57a 0.3A 0.15A
Product specification: length 54mm, width 42mm, height 28mm
Product features: when the power of special door cabinet is cut off, the lock will open the door of the cabinet and lock the door when the power is on. The function of the electric lock in the market is the opposite, so the power consumption is saved. The structure of the lock is simple, the use cost is low, and the installation is convenient.
Service life: more than 500000 times under rated working conditions
Instructions for use and installation:
1. The red and black lines are the power lines of electromagnetic lock, with positive and negative poles, input voltage of DC6V / 12V / 24V and current of respectively 0.57A 0.3A 0.15A ;
2. When the switch is connected to the power supply, the extension length of the locking tongue is 9.3MM When the door is locked and the power is off, the locking tab retracts by the spring force inside 9.3MM , the door lock is unlocked.

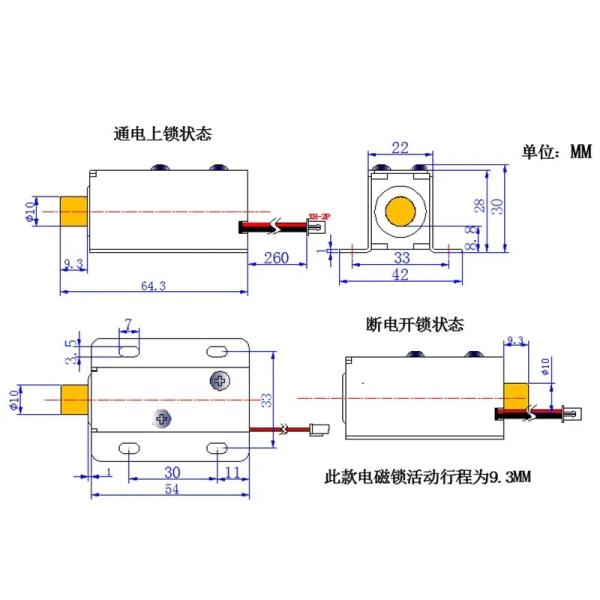

3. Installation dimension diagram:
|
item
|
value
|
|
Place of Origin
|
China
|
|
Brand Name
|
Cixin technology
|
|
Model Number
|
U1054s-06
|
|
Type
|
open frame push pull solenoid
|
|
Duty Cycle
|
power-on rate 10%
|
|
Power (Watts)
|
19.2w
|
|
Voltage - Rated
|
DC 6V, DC 12V, DC 24V
|
|
Mounting Type
|
Thread installation
|
|
Description
|
DC 12V 24v open frame solenoid 8mm stroke solenoid for locks
|
|
Product name
|
open frame solenoid
|
|
Voltage
|
6VDC/12VDC/24VDC
|
|
Stroke
|
8-12mm
|
|
Diameter
|
10mm
|
|
Rated voltage
|
DC6V 10%
|
|
Tolerance
|
±0.2
|
|
Service
|
24 Hours Online
|
|
Certificate
|
ISO9001:2015
|
1. who are we?
We are based in Guangdong, China, start from 2014,sell to North America(35.00%),South Asia(25.00%),Western Europe(20.00%),South America(15.00%),Northern Europe(5.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production; Always final Inspection before shipment;
3.what can you buy from us?
Electromagnetic devices and parts,electronic component,Hardware accessories,Plastic fitting
4. why should you buy from us not from other suppliers? Founded in 2014, Our company has rich R&D and manufacturing experience in past 7years,for providing high-tech products, such as rotating electromagnets.We have effectively shorten the customer's time and reduced the customer's cost.
5. what services can we provide?
Accepted Delivery Terms: FOB,DDP,Express Delivery; Accepted Payment Currency:USD,HKD,CNY; Accepted Payment Type: T/T,D/P D/A; Language Spoken:English,Chinese
